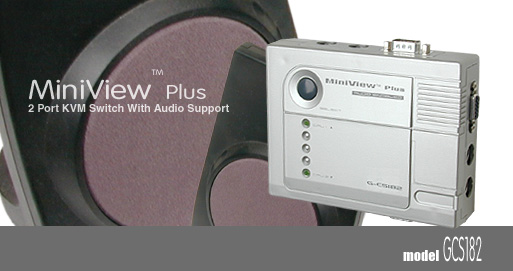

MiniView™ GCS182 Plus KVM with Audio - 2 Port MiniView™ Plus KVM
Switch with Audio
Recognizing the importance of audio in any multimedia setup, we’ve
added microphone and speaker sharing to our latest two-port MiniView™.
Perfect for home use, multimedia applications and presentations, the
MiniView™ Plus allows a single keyboard, mouse, monitor and audio
setup to be shared among two PCs or Macintosh systems.* Keyboard and
mouse emulation ensure smooth operation, while mouse translation
enables you to use a PS/2 mouse to access PS/2 and Serial computers.
This self-powered KVM switch includes support for Plug-n-Play
monitors, most wheel mice and incredible video at resolutions of up to
1920 x 1440. Managing multiple computers has never been easier, and
since IOGEAR specializes in complete KVM solutions, you can be sure
the MiniView™ Plus comes with all the cables and adapters you need for
a painless installation.
* Macintosh support requires IOGEAR’s Mac Adapter.
Cables included!
|
|

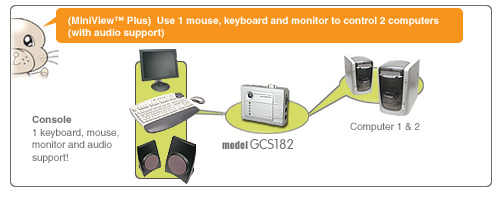

IOGEAR GCS182 Diagram and Application |
 |
|
IOGEAR GCS182 Features and Benefits |
- Use one keyboard, monitor and mouse to control two PCs
- Microphone / speaker sharing
- Microsoft Intellimouse, Logitech FirstMouse+, MouseMan+, and other
special mice are supported
- PS/2 Mouse emulation for error-free boot-up
- PS/2 Mouse translation allows a PS/2 mouse to control serial
computers
- Connected PC’s can be added or removed from the setup without
powering off the KVM switch
- Plug-n-Play monitor support. MiniView™ switches support video
resolutions up to 1920 x 1440
- No software required
- Built in AutoScan mode
- Keyboard lock states are stored for each PC
- LED's allow for easy status monitoring
- 3 Year Limited Warranty
|
 |
 |
 |
|
Microphone & speaker inputs connect directly to your sound card |
Fully
supports Microsoft IntelliMouse, IBM Scroll Point mouse and Logitech
wheel mice |
No
DIP switches, software or power supply needed. |
|
|
IOGEAR GCS182 Requirements |
- PCs with PS/2 or serial mouse connections, PS/2 or AT keyboard
connections, and a HDB15 video display adapter
- A PS/2 or serial mouse
- A PS/2 or AT keyboard
- A VGA, SVGA or MultiSync monitor
- A microphone & speaker set with standard headphone connectors
|
|
IOGEAR GCS182 Package Contents |
- 1 MiniView Plus KVM
- 2 bonded KVM cables
- 2 sets of microphone/speaker cables
- 1 PS/2 to serial mouse adapter
- 1 PS/2 to AT keyboard adapter
- 1 instruction manual
- 1 quick start guide
|
|
IOGEAR GCS182 Specifications |
|
Function |
GCS182 |
|
Computer Connections |
|
Direct |
2 |
|
Console Connectors |
|
Audio |
1 |
|
Keyboard |
1x6 pin mini-DIN Female (PS/2) |
|
Microphone |
1 |
|
Monitor |
1xHDDB15 Female |
|
Mouse |
1x6 pin mini-DIN Female (PS/2) |
|
CPU Connectors |
|
Audio |
2 |
|
Keyboard |
2x6 pin mini-DIN Female (PS/2) |
|
Microphone |
2 |
|
Monitor |
2xHDDB15 Male |
|
Mouse |
2x6 pin mini-DIN Female (PS/2) |
|
Dimensions |
|
Height |
1.4" |
|
Length |
5.2" |
|
Width |
4" |
|
Emulation |
|
Keyboard |
PS/2, AT |
|
Mouse |
PS/2 |
|
Housing |
|
Case |
Plastic |
|
LEDs |
|
Selected |
2 |
|
Port Selection |
Push Buttons or Hot Keys |
|
Power |
|
Amps |
20 mA (Max) |
|
Voltage |
DC 5V |
|
Scan Interval |
5 seconds |
|
Video Resolution |
1920x1440 (Max.); DDC2B |
|
Weight |
64 OZs |
