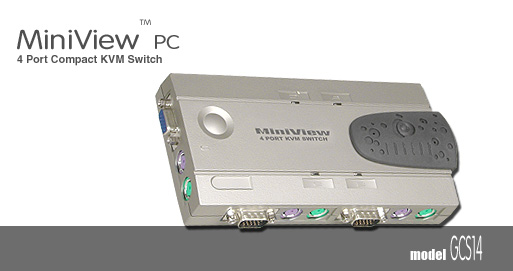

IOGEAR GCS14 MiniView KVM Switch

IOGEAR GCS14

iogear gcs14

MiniView GCS14 Compact KVM Switch - 4 Port MiniView Compact KVM Switch
Control 4 computers with a single keyboard, mouse, and monitor

Introducing the four port MiniView KVM switches from IOGEAR - simple solutions for those with more PCs than hands. Use one keyboard, one mouse and one monitor to control up to four PCs or Macintosh systems.* These self-powered KVM switches feature mouse & keyboard emulation to ensure smooth operation, as well as support for Plug-n-Play monitors and most wheel mice. Our patented VSE Video Signal Enhancement technology provides rich, 32-bit color at resolutions up to 1920 x 1440. Throw in all the necessary cables and adapters to get you up and running, and you've got two more complete KVM solutions from IOGEAR.

* Macintosh support requires IOGEAR's Mac Adapter.

Cables Included!

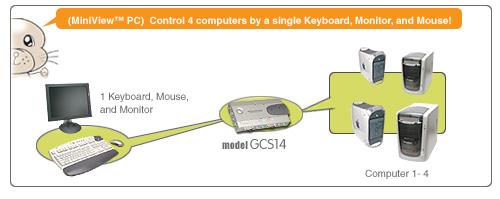

IOGEAR GCS14 Diagram and Application
iogear gcs14 diagram
IOGEAR GCS14 Features and Benefits
  • Use one keyboard, monitor and mouse to control four computers
  • Microsoft Intellimouse, Logitech FirstMouse+, MouseMan+, and other special mice are supported
  • Port selection through push button and Hotkeys
  • PS/2 Mouse emulation for error-free boot-up
  • Connected PC's can be added or removed from the setup without powering off the KVM switch
  • Plug-n-Play monitor support
  • MiniView switches support video resolutions up to 1920x 1440
  • No software required
  • Built in AutoScan mode
  • Keyboard lock states are stored for each computer
  • LEDs allow for easy status monitoring
  • Macintosh keys are remapped on the PS/2 keyboard
  • Built-in surge protection
  • 3 Year Limited Warranty
iogear gcs14 close-up iogear gcs14 close-up iogear gcs14 close-up
Easy switching from the selection button No DIP switches, software or power supply needed VSE: Patented Video Signal Enhancement technology supports ultra high resolution up to 1920 x 1440
IOGEAR GCS14 Requirements
  • Computers with PS/2 mouse connections, PS/2 or AT keyboard connections, and HDDB15 VGA connection
IOGEAR GCS14 Package Contents
  • 1 MiniView 4-port KVM switch
  • 4 sets of premium bonded KVM cables
  • 1 installation manual
  • 1 quick start guide
  • 1 product registration card
IOGEAR GCS14 Specifications
Function GCS14
Computer Connections
Direct 4
Console Connectors
Keyboard 1x6 pin mini-DIN Female (PS/2)
Monitor 1xHDB15 Female (Std. VGA/SVGA)
Mouse 1x6 pin mini-DIN Female (PS/2)
CPU Connectors
Keyboard 4x6 pin mini-DIN Female (PS/2)
Monitor 4xHDB15 male (Std. VGA/SVGA)
Mouse 4x6 pin mini-DIN Female (PS/2)
Dimensions
Height 1.25"
Length 6.8"
Width 3.5"
Emulation
Keyboard PS/2, AT
Mouse PS/2
Housing
Case Plastic
LEDs
Selected 4
Port Selection Push Buttons or Hot Keys
Power
Amps 20mA (Max.)
Voltage DC 5V
Power Consumption DC 5V 20mA (Max.)
Scan Interval 5 seconds
Video Resolution 1920x1440; DDC2B
Weight 84 OZs
