IOGEAR GCS138
IOGEAR GCS138 MiniView KVM Switch

IOGEAR GCS138

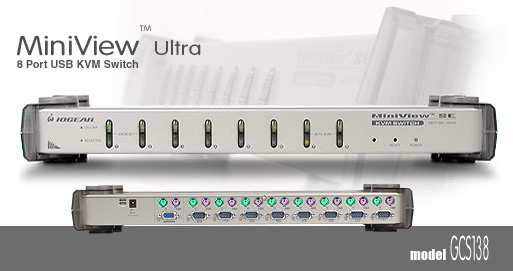

MiniView™ GCS138 Ultra KVM Switch - 8 Port MiniView™ Ultra KVM Switch
Control 8 computers with a single keyboard, mouse, and monitor

Your business is growing faster than you expected and four computers simply aren’t enough to meet your needs? Not a problem. IOGEAR’s new eight-port MiniView™ Ultra is just the tool you need to help reduce the need for redundant hardware. Eight monitors, mice and keyboards are simply too expensive, bulky and downright inconvenient for most system administrators. Why bother when you can control all eight, or even up to 512 computers with a single keyboard, monitor and mouse. Just think of the time, space and money you’ll save.

But our MiniView™ Ultra is much more than a simple eight-port KVM switch. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while our On Screen Display technology allows you to assign a unique name to each computer and access it via a slick, menu-driven interface. With it’s 1U, 19” rack-mountable casing and status-monitoring LEDs, the MiniView™ Ultra is the perfect switch for your server room or any other multi-computer environment.

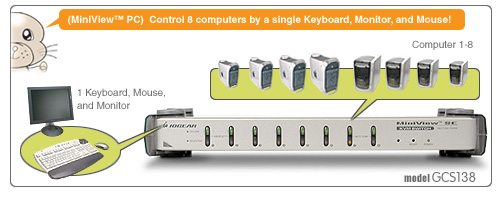

IOGEAR GCS138 Diagram and Application

IOGEAR GCS138 Features and Benefits

• Use one keyboard, monitor and mouse to control eight computers
• Control up to 512 computers by connecting multiple GCS138's together
• On Screen Display provides a convenient method for accessing the computers
• Compatible with Windows 3.1/95/98/2000/NT, OS/2, Netware, Dos, PC-DOS and Linux
• Add Macintosh support with IOGEAR’s optional Mac Adapter (GCV160)
• Connected computers can be added or removed from the setup without disturbing the other computers
• Keyboard/mouse translation allows PS/2 peripherals to control both PS/2 and serial-based computers
• Plug-n-Play monitor support. High-resolution video support (up to 1920 x 1440)
• No software required. Built in AutoScan mode
• LED's allow for easy status monitoring
• Lifetime technical support
• 3 Year Limited Warranty

IOGEAR GCS138 Requirements

• Computers with PS/2 or serial mouse connections, PS/2 or AT keyboard connections, and HDDB15 VGA connection

IOGEAR GCS138 Package Contents

• 1 Miniview Ultra KVM switch
• 1 power adapter
• 1 rack mount kit
• 1 installation manual
• 1 quick start guide
• 1 warranty registration card

IOGEAR GCS138 Specifications

IOGEAR GCS138 Downloads
