IOGEAR GCS102U
IOGEAR GCS102U MiniView KVM Switch

IOGEAR GCS102U

MiniView™ GCS102U USB KVMP - 2 Port MiniView™ USB KVM & Peripheral Sharing Switch

With increased data bandwidth, true Plug-n-Play compatibility and hot-swappability, USB has become the new standard in low-mid speed peripheral communication. With this in mind, we developed the new MiniView™ KVMP switches with USB peripheral sharing capability. Use the MiniView™ with a monitor, USB keyboard, USB mouse and two other USB devices - any USB devices. If you need to use more USB devices, connect a USB hub to increase the number of shared ports. With IOGEAR’s USB MiniView™, peripheral sharing has never been easier.

Cables Included!

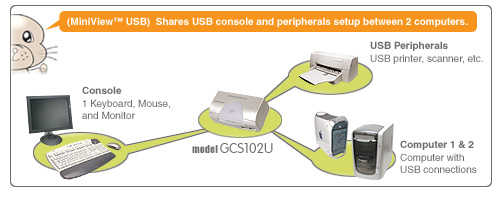

IOGEAR GCS102U Diagram and Application

IOGEAR GCS102U Features and Benefits

• Share a monitor, USB keyboard, USB mouse, and two more USB devices among two computers (Add USB hubs to share up to up to 127 devices)
• Bonded premium cables included
• Works with Macs, PCs and other USB-compliant computers
• USB 1.1 compliance ensures full compatibility with your USB devices
• Operating system-independent operation - no software required
• Connected computers can be added or removed from the setup without disturbing the other computers
• Plug-n-Play monitor support
• Supports video resolutions up to 1920 x 1440
• External power adapter included
• Built in AutoScan mode
• Buffering technology prevents system failure
• LED's allow for easy status monitoring
• Increases desk space and productivity while decreasing power and equipment costs
• Trim-line, compact design
• 3 Year Limited Warranty

IOGEAR GCS102U Requirements

• PCs or Macs with at least one available USB port
• A USB compliant operating system
• A HDB15 video display adapter and monitor
• USB mouse and keyboard

IOGEAR GCS102U Package Contents

• 1 MiniView USB KVM & peripheral switch
• 2 bonded USB-KVM cables
• 1 user manual
• 1 quick start guide
• 1 warranty registration card

IOGEAR GCS102U Specifications
