Cstation L-Series provides centralize and secure your PCs while delivering full PC functionality to end-users as far away as 2600 feet from the desktop with a L-Series Cstation.
The smallest form factor and lowest priced Cstation is the L-series. The L-series is the ideal platform for many environments that do not require additional peripherals beyond USB and PS/2 devices, such as office automation, public kiosks and call centers.
The solid-state Cstation appliances are located at each user's desk, while their PCs are relocated to a remote central location. Cstations are connected to a C-link PCI add-in card installed in the remote PC, via copper or fiber cabling. This maintains the critical one-to-one relationship between a user and their assigned PC, preserving the PC experience for each user. The user's keyboard, monitor and mouse are plugged into the Cstation that also includes USB, audio, as well as serial and parallel device connectivity using the PCI slot. A video card in the local Cstation provides true DVI support, and video quality superior to any other extension product on the market. Plus, the open architecture solution allows users to decide the computer type and graphics card desired.
The Cstation L-Series appliance and C-Link add-in card function as a standard PCI bridge connecting the Cstation to the remote centralized PC. Cabling is used for transport of the C-Link protocol, a point-to-point protocol with a peak transfer rate of 250 MB/s aggregate bandwidth (125 MB/s full duplex) between a C-Link interface card and a Cstation. The L1000 and L1100 contain a multifunction system board combining the C-Link protocol logic, PCI Bridge, I/O controllers, audio, USB, PS/2, and video (optional).
Cstation L-Series Features and Benefits
Cstation L-Series ROI. Minimize most desktop maintenance & end-user downtime
Cstation L-Series Centralizes Administration. Co-locate all end-user PCs to one location for easier repairs, maintenance, upgrades and administration. Easily switch users from a non-functioning PC to a functioning spare within minutes.
Cstation L-Series Multi-monitor support. Up to 6 monitors, with DVI capability, when using an optional add-in graphics cards.
Maintain End-User Experience. Full peripheral and multimedia support. Optional RPC kits provide remote PC reboot capability.
Cstation L-Series Asset Security. Secures all PC assets in a centralized environment.
Cstation L-Series Existing Infrastructure Support. Supports all PCI-based PCs, plus Windows 95-2000, ME, XP, and Linux RedHat operating systems.

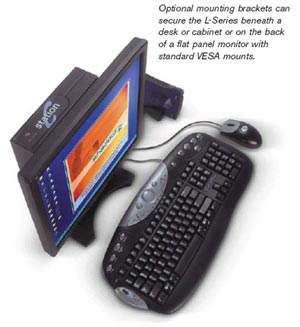

Avocent Cstation L-Series Application
Avocent Cstation L-Series Specifications
CSTATION L-SERIES APPLIANCE STANDARD CONFIGURATION
Slots
One PCI slot located in the rear of the unit for optional video support
Audio
Stereo line in & out
Microphone in and headphone out
Peripherals
Two USB connectors for support of USB 1.1 compliant devices
Two PS/2 or USB keyboard & mouse
Cstation L-Series Physical specifications
Height - 2" (5.08 cm)
Depth - 8.5" (21.59 cm)
Width - 8" (20.32 cm)
Weight - 8 lbs (2.23 kg)
Cstation L-Series POWER/HARDWARE/CABLING REQUIREMENTS
Power
U.S. - 120 VAC, 15 Amp wall socket
International - 100-240 VAC 50-60 Hz
Cabling – Cstation L-Series L1000
The L1000 is supported up to 320 feet over CAT5, CAT5e, or CAT6*; Point-to-point using all four pairs of UTP CAT 5, 5e, 6, maximum 6 connectors (3 complete cable junctions), including patch and wall panels between Cstation and C-Link card.
Cabling – Cstation L-Series L1100
The L1100 is supported up to 2600 feet over 802.3z 1000 Base-SX fiber*. Point-to-point maximum 4 connectors, including patch and wall panels, between the Cstation and C-Link card.
* Distance varies based on quality of cable used and quality of installation. Please contact Avocent Digital Desktops for further information.
Cstation L-Series C-LINK PCI ADD-IN CARD REQUIREMENTS
5.0V or 3.3V PCI slot, version 2.2
1/2 length card
PCI low profile MD 1 (C1000 only)
Cstation L-Series Remote Power Control (RPC) Kits
ATX compliant system;
PCI bus must support 3.3V auxiliary power or PC must contain spare WOL connector
Approved Agency
FCC part 15A
UL 1950
CSA C22.2 No. 950-95
CE
WARRANTY
Two Year
Extended Warranty available
|
| Cstation L-Series Cat5 Based | L1000B-AM | $455 |
| Cstation L-Series Fiber Based | L1100B-AM | $1100 |
Corporate & Government Discount Pricing is available at 1-800-638-2638 |
