Avocent Longview
830 Companion (LV830-AM)
|

|
The Avocent LV830-AM LongView Companion extender
allows a second user station to be located near the
computer. When combined with the LongView extender,
you can place connected computers up to 500 feet away
with any CAT 5 cable and still have control of your
keyboard, monitor, mouse, speakers, microphone and serial
devices. The Avocent LongView extension technology improves
physical and data security and increases workspace by
separating your staff from their computers.

Avocent Longview 830 (rear view
of transmitter & receiver)
Avocent LongView LV830-AM Features and Benefits:
- Companion mode supports a second user connection
locally at the target device. Secure location placement
minimizes tampering, system damage and unauthorized
software installation on computers.
- AutoTuning technology automatically compensates
for signal loss, delivering clear, crisp video images
up to 500 feet at a resolution of 1024x768.
- Environment--Reduce downtime by removing the
computer from an environment not suitable for normal
and reliable operation.
- Save space--Move your computer away from the
desk and work area to free up valuable desktop space.
- Installation ease--The single cable-to-desk
design simplifies installation while making it easier
for you to move, add or change configurations.
- Security--Place your system unit, software and
sensitive data in a secure area to minimize tampering,
system damage and unauthorized software installation.

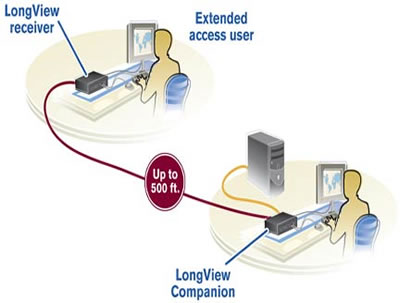

Avocent LV830-AM Diagram
Avocent LV830-AM Specifications
|
Mechanical
|
 |
Height
|
 |
1.9 in. (4.8
cm) |
|
Width
|
 |
8.1 in. (20.6
cm) |
|
Depth
|
 |
4.8 in. (12.2
cm) |
|
Weight
|
|
1.0 lbs. (9.45
Kg) |
|
Style
|
 |
Desktop |
 |
 |
 |
 |
|
Environmental |
Operating Temp
|
 |
32 to 104 F (0
to 40 C) |
|
Storage Temp
|
 |
-4 to 122
F (-20 to 50 C) |
|
Power |
Operating
Voltage
|
 |
24V DC power
supply included |
|
|
Power Frequency |
|
50 - 60 Hz autosensing |
| |
Input Power |
|
25 W maximum |
|
Supported Hardware |
Computers
|
 |
PS/2 |
|
KVM Switch |
 |
PS/2 local
ports |
|
Video Resolution |
|
1024 x 768 @
500 feet |
|
Peripherals |
|
PS/2 keyboard/mouse,
audio in/out, serial devices and VGA video |
|
Standards |
Approved Agency
|
|
cUL, UL, CE,
FCC15 Class A, VCCI-A |
|
Warranty |
Length |
|
Two Year |
|
|
|
Avocent LongView 430 Extender LV430-AM
Transmitter/receiver pair with
2 power supplies, PS/2 keyboard, mouse,
serial device, speakers, microphone |
LV430-AM |
$495 |
|
Avocent Longview 830 Companion LV830-AM
Local and remote, transmitter/receiver pair
with 2 power supplies, PS/2 keyboard, mouse,
serial device, speakers, microphone |
LV830-AM |
$595 |
|
Corporate
& Government Discount Pricing is available
at 1-800-638-2638
|
|
|
|
|
