The Avocent 17-inch LCD rack console and SwitchView 1000 8-port KVM switch
create a single integrated access solution for SMB and server room environments.
This solution provides optimal support of PS/2 and USB systems. Out-of-band
access to critical servers is non-intrusive to the network and reduces downtime.
The Rackmoutn LCD console switch includes an On-Screen Display (OSD) in
multiple languages. The Grade A 17-inch TFT active-matrix monitor supports
1280x1024 resolution @ 60Hz. For the security-conscious user, a key lock
controls access to the LCD rack console.

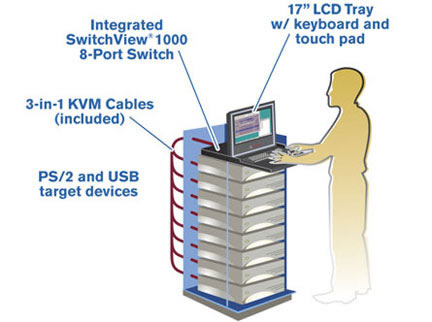

Avocent Rackmount LCD Application Diagram
Avocent LCD17SWT8-001 Features and Benefits:
- LCD console and KVM switch integration: Single, access and control
solution to servers
- 1U slide in design: Easy to access and low demand on valuable rack
space.
- Combo cables: Uses a three-in-one KVM cable that supports USB or PS/2
target devices
- Security: A key lock prevents access to the keypad or LCD trays.
- Access: Rack-based access reduces downtime when network is unavailable.
- Out-of-band: Efficient, non-network access to servers reduces downtime
- Grade A, tempered glass LCD. TFT active-matrix
- OSD: On screen display (OSD) in multiple languages
Avocent LCD17SWT8-001 Specifications:
