Avocent LCD15SRP-001
Avocent LCD Rack Console

Avocent Rack LCD LCD15SRP

Avocent LCD15SRP-001

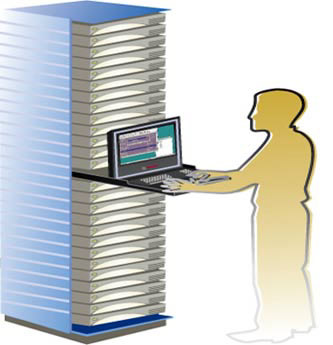

The Avocent LCD15SRP is a 1U-high 15" LCD single-rail rack mount console which provides out-of-band access to KVM switches in SMB, data centers and server rooms for convenient access and control of your PCs and PS/2 servers. Out-of-band access to your critical servers is non-intrusive to your network and reduces downtime.

This rack LCD console includes an on-screen display (OSD) in multiple languages. The Grade A monitor, 15-inch TFT active-matrix supports 1024x768 resolution @ 60Hz. For the security-conscious user, a key lock controls access to the LCD console.

Avocent LCD15SRP-001 Features and Benefits:

• 1U slide-in design
• Out-of-band: Efficient, non-network access to servers reduces downtime
• Key lock prevents access to the keypad or LCD trays
• Rack-based access reduces downtime when network is unavailable
• Compatibility with Avocent 1U KVM switches
• Grade A, tempered glass LCD. TFT active- matrix Crisp, clear images
• OSD in five languages On screen display (OSD) in five languages: English, German, Spanish, Italian and French

Avocent LCD15SRP-001 Specifications:

Mechanical		Height		1.7 in. (44 mm)
		Width		19 in. (482 mm)
		Depth		17.6 in. (447.5 mm)
		Weight		26.0 lbs (11.8 kg)
Environmental		Operating Temp		32 to 122 degrees F (0 to 50 degrees C)
		Storage Temp		-4 to 140degrees F (-20 to 60 degrees C)
Power		Operating Voltage		AC 100 - 240 VAC
		Input Power		Consumption 25W
Supported Hardware		Computers		PS/2
		Monitors		KVM Switch Local port PS/2
		Resolution		1024 x 768
Standards		Approved Agency		cUL, UL, CE, FCC, C-tick
