Avocent EVR1500 |
 |
Avocent EVR1500 Monitoring Appliance
EVR1500 Monitoring Appliance
The Avocent EVR1500 appliance monitors and detects environmental
conditions that can adversely affect operation in the immediate
vicinity of servers and other network devices, and alerts system
administrators when those conditions occur. The EVR1500 device
comes with four pre-set internal sensors: temperature, humidity,
airflow and audio. It also has eight external configurable analog
sensors, six digital input sensors and two digital output sensors.
Avocent EVR1500 Monitoring Appliance Features
and Benefits
The EVR1500 is the newest addition to the Avocent DSR KVM
over IP. The DS Series is a comprehensive suite of IP-based
solutions for managing servers, serial devices and now, environmental
conditions in the rack. Like other products in the DS Series,
the EVR1500 can be accessed over IP connections and can be controlled
through the DS Series DSView interface. Using a single interface,
administrators can have CLICK AND CONNECT™ control of almost
any data center device.
Note: DSView and DSAuth are sold separately.
-
Allows you to remotely access, monitor and
control environmental and security conditions
-
You can pre-configure parameters and set
alerts for critical environmental conditions
-
A design that can easily accommodate growth
and other changing conditions in your data center
-
Control with DSView® software which allows
you to also manage power systems, servers and serial devices
via KVM over IP

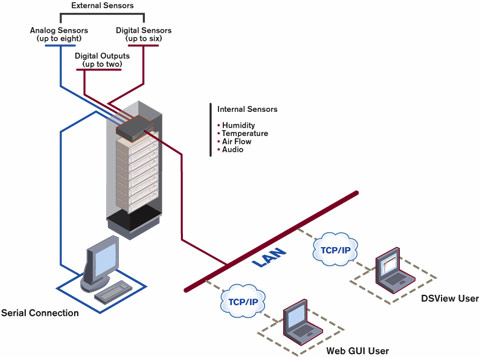

Avocent EVR1500 Monitoring Appliance Diagram
Avocent EVR1500 Monitoring Appliance Specifications
|
Mechanical |
|
Height
|
|
1.75 in. (4.45 cm)
|
|
Width
|
|
8.5 in. (21.5 cm)
|
|
Depth
|
|
8.00 in. (20.5 cm)
|
|
Weight
|
|
3.5 lbs. ( kg) without
cables |
|
|
|
|
|
Environmental |
Operating Temp
|
|
32 to 104 degrees Fahrenheit
(0-40 Degrees Celsius)
Humidity 10 – 95% non-condensing |
|
Storage Temp
|
|
|
|
|
|
|
|
Power |
Power Consumption
|
|
25 Watts |
|
Power Frequency
|
|
|
|
Input
|
|
+5VDC/+12VDC from external
power supply with IEC-320 power cord receptacle |
|
|
|
|
|
Supported Hardware |
Ethernet
|
|
10/100 BASE-T, IEEE 802.3u
compatible |
|
Serial Port
|
|
Serial RS232 via DB9
Male connector |
|
Peripherals
|
|
Analog Sensor:
0-250Volts input range x 8
Digital Sensor I/P:
Dry contact closure x 8 |
|
|
|
|
|
Standards |
Approved Agency
|
|
UL1950 third edition,
cUL, FCC Part 15 Class A, CE, VCCI, C-Tick
|
|
Environmental monitoring appliance
- Discontinued |
EVR1500-AM |
$1,195 |
|
External door contact sensor for
EVR1500 Discontinued |
EVR-DCS |
$75 |
|
External fluid detection sensor
for EVR1500 Discontinued |
EVR-FDS |
$175 |
|
External humidity sensor for EVR1500
Discontinued |
EVR-HS |
$350 |
|
External temperature sensor for
EVR1500 Discontinued |
EVR-TS |
$175 |
|
1U rack mount shelf for EVR1500
Discontinued |
790200 |
$75 |
|
DS Authentication server software
license (one required per installation)
Discontinued |
DSAUTH1 |
$1,000 |
|
User software for 1 user (Required:
DSVIEW1-1 or 1-5 or 1-100)
Discontinued |
DSVIEW1-1 |
$750 |
|
User software for 5 users (Required:
DSView1-5 or 1-1 or 1-100)
Discontinued |
DSVIEW1-5 |
$2,500 |
|
Corporate &
Government Discount Pricing is available at 1-800-638-2638
|
