Avocent ECMS4000
Avocent Emerge AV Extender Solution

Avocent Emerge ECMS4000 Extender

The Avocent Emerge ECMS4000 extender delivers uncompromised digital workstation extension across unlimited distances. Offering high quality crisp video and highly responsive mouse interaction, this network-based product also provides CD quality audio and seamless extension of USB mass storage devices. Media-intense applications such as video editing benefit from real-time user experience while mission critical media servers are securely maintained and managed. The Emerge ECMS4000 extension solution consists of a transmitter that connects externally to each remote computer with dual DVI-D video connectors, and a receiver that connects at each user desk with dual DVI-I connectors.

The Emerge ECMS4000 extender provides access from dual video monitor workstations to user stations using point-to-point extension over the same IP connection. The high quality extension provided by the ECMS4000 extender is ideal for users who need a rich media dual video display experience while using TCP/IP as the transport protocol. The solution operates within the boundaries of a typical IP network.

Features & Benefits of the Emerge ECMS4000 Include:

• Digital Desktop Over IP - Provides quality high resolution video using cost-effective Ethernet cabling and networking devices. Delivers virtually unlimited extension distances.
• Advanced Real-Time Hardware Compression - Frame-by-frame compression provides near-zero latency, with nearly lossless quality. Optimized to maintain 35 fps across two ports or 60 fps on one port. External hardware compression eliminates OS-specific software and drivers that consume precious server resources and introduce complexities that could cause servers to crash or hang.
• DVI-I Video - Digital DVI-D is supported at the server side. Digital and analog DVI-I is supported at the receiver side. Digital video delivers crisp image quality.
• CD Quality Audio - Provides CD quality audio performance for users with computer generated audio applications.
• USB 2.0 Devices. - Supports the ever increasing deployment of USB only machines. USB keyboard and mouse are supported from end to end.
• USB 2.0 Mass Storage - Allows remote enumeration of USB mass storage devices such as thumb drives, CD drives, and hard drives.
• Physical Separation of User from Target Device - Provides increased security, simplified desktop support, and reduced downtime. Improves desktop environmental conditions such as noise, heat, and space.
• Encryption of Network Data - Ensures full security of user data using 128 bit AES encryption.
• Ease of Integration and Installation - Single wire between the desk and user station.

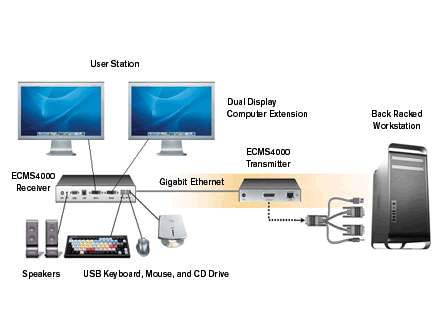

Avocent ECMS4000 Extender Application Diagram
