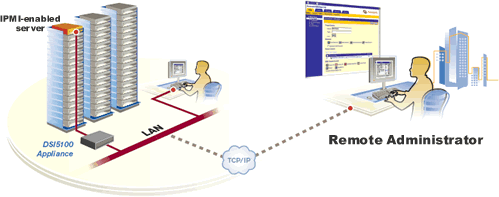

Using DSView 3 management software, administrators can manage power and system health on individual IPMI-enabled servers through the DSI5100 IPMI proxy appliance. The same secure single interface is used to manage KVM, serial and external power devices.
|
Avocent DSI5100
|
|
The Avocent DSI5100 IPMI proxy appliance adds new capabilities to the proven DS Series data center solutions. Managed by DSView 3 management software, this new appliance provides the means for IT administrators to take full advantage of emerging server management standards without installing new tools. You can use a single interface to manage IPMI, KVM, serial and power.Avocent DSI5100 Features and Benefits
Power management is a significant benefit to accessing Intelligent Platform Management Interface (IPMI) ? Avocent OSA technology embedded in servers for remote out-of-band access to sensors on target devices. IT administrators also can monitor and control system health including the temperature, fan, and voltage.
With power and system health monitoring now internal on IPMI-enabled servers, you can know exactly which server needs attention. Because IPMI data is stored on a stand-alone processor independent of the OS, BIOS and CPU, you can use IPMI even when the operating system is unresponsive. With out-of-band remote access the DSI5100 IPMI proxy appliance is another way Avocent helps you manage your entire IT infrastructure. - Accesses power control without the need for a managed power unit
- Securely proxies IPMI data from UDP to TCP data stream for routing to a user console through a firewall
- Avocent DSI5100 provides single interface to access and control all appliances through the centralized DSView 3 management software
- One interface connects and manages IPMI data, KVM, serial and external managed power connections
- IPMI provides access to a system event log for checking the operational status of target devices
- Avocent DSI5100 supports multi-vendor server environments
- Click and connect access and control for up to 64 target devices
Avocent DSI5100 Specifications | Mechanical | | | | 1.75 in. (4.45 cm) | Width | | 17.00 in. (43.18 cm) | Depth | | 11.00 in. (27.94 cm) | Weight | | 8.00 lbs. ( 3.6 kg) without cables | | | | | | Environmental | Operating Temp | | 32 to 104 degrees Fahrenheit (0-40 Degrees Celsius)
Humidity 10 ? 95% non-condensing | Storage Temp | | -4 to 158 degress Fahreheit (-20 to 70 degrees Celsius) | | | | | | Power | Operating Voltage | | 110-240 VAC | Power Frequency | | 50 - 60 Hz autosensing | | Input | | IEC connector on back of appliance | | | | | | Supported Hardware | Ethernet | | 100 BASE-T, IEEE 802.3u compatible | Serial Port | | Serial RS232 via DB9 Male connector | Peripherals | | | | | | | | Standards | Approved Agency | | UL1950 third edition, cUL, FCC Part 15 Class A, CE, VCCI, C-Tick, GS, GOST, MIC, IRAM |
| DSI5100 Order Details | Part Number | List Price | | IPMI Proxy appliance | DSI5100-001 | $1,495 | | DSView 3 software - 1 User add-on license | DSV3-1 | $795 | | DSView 3 software - 5 User add-on license | DSV3-5 | $2,995 | | DSView 3 software - 1 Spoke Add-on License | DSV3-SPOKE | $2,500 | | DSView 3 Portfolio B - 1 Hub/1 Spoke/5 Users | DSV3-SW | $4,495 | | DSView 3 Portfolio A - 1 Hub/5 Users | DSV3-SWA | $2,495 | DSView 3 software - Upgrade 1 Hub/5 Users (Existing
DSView 2 customers upgrading to DSView 3) Discontinued | DSV3UG-SW | $995 | | DSView 3 software - Upgrade 1 Hub/5 Users (Existing DSView 2 customers upgrading to DSView 3) Discontinued | DSV3UG-SW | $995 | Corporate & Government Discount Pricing is available at 1-800-638-2638 |
