Avocent CCM1650
|
|
The recommended replacement is the
Cylcades AlterPath
ACS16
Avocent CCM1650
The Avocent CCM1650 Secure Console Server allows
local and remote Serial access to manage up to a combination
of 16 servers and other serial devices. Remote serial
management from any location in the world is accomplished
by using the DSView 3 management software program. Not
limited to managing only computers, the Avocent CCM850
allows remote access and control of routers, switches,
networking equipment, and power strips.
The 16-port Avocent CCM1650 console management appliance
provides secure in-band and out-of-band connections
to console ports of servers and serially managed devices
such as network hubs, routers, switches, and power management
systems. The console manager offers features such as
offline history buffering and hardware break suppression
which distinguish the Avocent CCM1650 console manager
from simplistic terminal servers, which are often misused
for this purpose.
System administrators can alter configuration parameters,
diagnose and recover from system faults, view statistics
and perform various other control related functions.
The Avocent CCM1650 appliance may be accessed by LAN,
WAN, and Dial-up or a direct terminal connection.
Whether you are local or remote, the Avocent CCM1650
console management appliance and AVWorks®
management software give you the tools to take command
of your data center. Blending seamlessly into your existing
network, the Avocent CCM1650 console manager may be
accessed using AVWorks, which includes a cross-platform
Telnet and SSH client. The Avocent CCM1650 console manager
is equally compatible with industry standard Telnet
and SSH clients. To permit access to existing user accounts,
the Avocent CCM1650 console manager is compatible with
industry standard RADIUS servers. Onboard user accounts
can also be established for ease of management. The
Avocent CCM1650 console manager SNMP MIB2 and enterprise
traps integrate directly with existing SNMP management
systems allowing for proactive measures.
Large Data Center Application
In large data centers, the Avocent CCM1650 console
management appliance may be configured to work in unison
with the DS1800, DSR®, SPC and other Avocent
switches and appliances. When attached to the KVM, serial
and power ports of devices within a data center, the
Avocent appliances enable administrators to manage those
devices through local access at the rack or by remote
access via KVM over IP connections.
Small to Mid-sized Data Center Application
For small to mid-sized data centers, the Avocent
CCM1650 console management appliances may be configured
for stand-alone operation. In this mode, the Avocent
CCM1650 appliance can be used in conjunction with third-party
Telnet and/or SSH client software for secure console
port management. User accounts and permissions may be
stored within the Avocent CCM1650 appliance or on an
external RADIUS server.
Software Features
- Complete KVM, Serial and Power Management
Solution: Works in unison with the DS1800, DSR,
SPC and other Avocent switches and appliances to
enable administrators to manage a wide range of
data center devices through local access at the
rack or by remote access through KVM over IP connections.
- Centralized Management: Avocent AVWorks
management software consolidates device discovery,
installation, administration, access and control
into a single cross-platform application.
- Security: The Avocent CCM1650 appliance
offers internal and external user authentication
methods and port-specific access rights.
- Ease of Access: Avocent DS management
software provides an explorer function that presents
your servers within an intuitive graphical user
interface, allowing you to locate and access your
critical resources via a simple mouse click. With
support for custom labels and icons, it is no longer
necessary to recall cryptic machine names or IP
addresses.
- Avocent Telnet Client: Compatible with
third-party SSH and Telnet clients. The Avocent
CCM1650 appliance comes complete with an Avocent
Java-based Telnet client. The supplied Telnet client
offers file-based session logging, cut and paste,
print screen, session history, macro support and
a wide range of terminal emulations.
- Browser Access: DSWebview combines ease
of Internet access with central security and management.
- Scalable: The Avocent CCM1650 appliance
architecture is scalable rather than stackable;
there are no restrictions on the number of DS appliances
that can be added to an installation.
- Non-blocked Access: The Avocent CCM1650
appliance architecture supports simultaneous sessions
to all serial ports.
Hardware Features
|

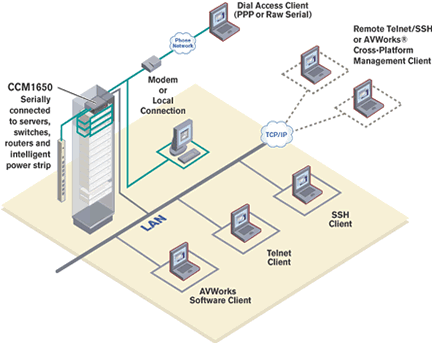

Avocent CCM1650 Diagram
|
Avocent
CCM1650 Order Details |
Part
Number |
List
Price |
|
16-port Console
Management Appliance |
CCM1650-AM |
$1,495 |
|
RJ-45 to DB-25
Male adapter, DTE |
210090 |
$15 |
|
RJ-45 to DB-25
Female adapter, DTE |
210091 |
$15 |
|
RJ-45 to DB-25
Male adapter, DCE |
210092 |
$15 |
|
RJ-45 to DB-25
Female adapter, DCE |
210093 |
$15 |
|
RJ-45 to DB-9
Male adapter, DTE |
210094 |
$15 |
|
RJ-45 to DB-9
Female adapter, DCE |
210095 |
$15 |
|
RJ-45 to Cisco
Male adapter for Cisco and Sun
Netra console port |
210105 |
$15 |
|
RJ-45 to DB-9
Female adapter, DCE |
210120 |
$15 |
|
RJ-45 to DB-25
Female adapter, DCE |
210121 |
$15 |
|
RJ-45 to DB-9
Male adapter, DTE |
210122 |
$15 |
|
RJ-45 to DB-25
Male adapter, DCE |
210123 |
$15 |
|
CAT5, RJ-45 to
DB-25 Male adapter, DTE |
210124 |
$15 |
|
CAT5, RJ-45 to
DB-25 Female adapter, DTE |
210125 |
$15 |
|
CAT5, RJ-45 to
RJ45 Cisco Male adapter for
Cisco and Sun Netra console
port |
210127 |
$15 |
|
Corporate
& Government Discount Pricing
is available at 1-800-638-2638
|
| |
|
|
|
Avocent
CCM1650 Cables |
Part
Number
|
List
Price
|
|
10-foot, reversing
cable (8-wire) |
690226 |
$9 |
|
25-foot, reversing
cable (8-wire) |
690227 |
$12 |
|
75-foot, reversing
cable (8-wire) |
690228 |
$17 |
|
Wiring Starter
Kit (8-wire): Kit Includes:
(1) RJ-45 to DB-25 DTE Male
adapter, (1) RJ-45 to DB-25
DCE Male adapter, (1) RJ-45
to DB-25 DCE Female adapter,
(1) RJ-45 to DB-9 Male adapter,
(1) RJ-45 to DB-9 Female adapter
and (1)10-foot 8-wire reversing
modular cable. |
750122 |
$45 |
|
Corporate
& Government Discount Pricing
is available at 1-800-638-2638
|
|
|
|
|
