Avocent AV2030-001
Avocent AutoView Cat5 KVM

Avocent AV2030-001

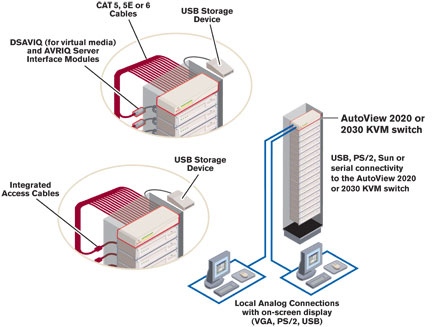

The AutoView 2030 dual user 16-port KVM switch includes local virtual media support, local USB peripheral support and connectivity to PS/2, USB, Sun and serial devices for small and midsize data centers. Using the on-screen display, you can easily configure your system and quickly select servers. The AutoView 2030 switch features flexible cabling options, giving you a choice of integrated access cables or server interface modules that let you customize cable lengths. Either cabling option automatically assigns and retains unique server names for each attached server, which simplifies your installation and makes re-configurations easy.

The AutoView 2030 KVM switching system includes local virtual media capability, multi-platform support, advanced cable management and a convenient on-screen display.

The AutoView 2030 dual user 16-port KVM switch includes local virtual media support, local USB peripheral support and connectivity to PS/2, USB, Sun and serial devices for small and midsize data centers. Using the on-screen display, you can easily configure your system and quickly select servers. The AutoView 2030 switch features flexible cabling options, giving you a choice of integrated access cables or server interface modules that let you customize cable lengths. Either cabling option automatically assigns and retains unique server names for each attached server, which simplifies your installation and makes re-configurations easy.





Avocent AutoView 2030 Features and Benefits

• Equipped with local virtual media capability.
  Server interface modules DSAVIQ-USB2 and DSAVIQ-USB2L required for virtual media support.
• Local virtual media lets you easily share a directly-connected USB storage device to all servers connected to a KVM switch.
• Two local users gain simultaneous access to 16 PCs and network devices.
• Easily configure your system; name and select your servers from the convenient on-screen display (OSD).
• BIOS-level access ensures connection to your attached servers regardless of the health or type of operating system.
• A 1U rack mount design save spaces in your rack.
• Flash-upgrades firmware gives you fast and easy updates for appliances and server interface modules.
• Keep Alive power safeguard allows your attached servers to continue network functions in the event of power failure to the AutoView switch.

Avocent AutoView 2030 Specifications

Mechanical		Height		1.75 in. (4.45 cm)
		Width		17 in. (43.18 cm)
		Depth		11 in. (27.94 cm)
		Weight		8 lbs. (3.6 kg) without cables
Environmental		Operating Temp		32F (0C) to 122F (50C)
		Storage Temp		-4F (-20C) to 140F (60C)
Power		Operating Voltage		100 - 240 VAC Autosensing
		Power Frequency		50 - 60 Hz
		Input Power		40 W maximum
Supported Hardware   Standards		Computers		IBM PC/AT, PC and 100% compatibles
		Monitors		Analog Port Maximum 1280 x 1024 @ 75 Hz
		Peripherals		PC keyboard, PC mouse, Microsoft Explorer mouse, Microsoft IntelliMouse family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble Wheel, Logitech Marble FX and Kensington 4-button mouse
		Approved Agency		UL, FCC, cUL, ICES, CE, N, GS, IRAM, GOST, VCCI, MIC, C-Tick
