Avocent AMX AMX5130 CAT5 User Station

Avocent AMX5130
AMX5130 users are permitted to control any target computer within the AMX matrix by utilizing PS2, USB or SUN peripherals. Unique to Cat5 based KVM solutions; the AMX5130 user station also transmits audio and serial signals to the AMX user along with providing standard KVM access. Graphical viewing of the patented Avocent OSCAR GUI is enabled though a standard VGA monitor permitting users to configure the KVM system and allows server selection. In addition, AutoTuning technology implemented with every AMX5130 user station will automatically compensate for varying cable types and lengths and adjusts for signal losses each time a port switch is made. Programmed skew compensation for this particular user station adjusts RGB signals each time a switch is made to a server.

The Avocent AMX5130 desktop user station provides access from your desk to an AMX KVM matrix switch system and one local computer. The AMX5130 user station connects to your multi-platform PS/2 or USB KVM peripherals and sends the KVM signals over an industry-standard UTP cable to an Avocent AMX matrix switch. In addition, this user station brings audio and serial support to the AMX user supporting stereo speakers and mono microphone.

Two UTP connections support AMIQs or a combination of AMX switch system and an AMIQ, allowing for multi-computer configurations along with local computer support.

Avocent AMX5130 - Features and Benefits

• Provides switching of stereo speakers and mono microphone

• Provides switching of serial up to 38.4k

• Supports connections to all AMX switches and IQs

• Provides USB keyboard and mouse at any user

• Ships with the AMIQDM server interface module for convenient connections from PS2-based servers to the AMX switch including audio and serial

• Supports multi-platform peripherals: PS/2 and USB (including PC, Mac and Sun USB keyboards)

• Allows you to access and control one local computer

• Provides high-quality video

• Automatically compensates for varying cable types and lengths: CAT5, CAT5e and CAT6 including GigaFlex

• Adjusts for skew between RGB signals each time a switch is made to a server

• Offers video resolutions up to 1280 x 1024 at 1,000 feet

• Works with patented OSCAR on-screen graphical interface to assist you with configuration and server selection

Avocent AMX5130 Specifications
Mechanical	Height		1.74 in (4.4 cm)
	Width		10.9 in (27.9 cm)
	Depth		11.5 in (29.2 cm)
	Weight		5 lbs. (2.0 kg)
Environmental	Operating Temp		32?F (0?C) to 122?F (50?C)
	Storage Temp		4?F (-20?C) to 122?F (50?C)
Power	Operating Voltage		100 - 240 VAC
	Power Frequency		50 - 60 Hz
	Input		1 Amp MAX
Supported Hardware	Computers		PS/2, Sun and USB with audio and serial
	Monitors		VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75Hz resolution at 100? or 1280x1024 @ 75Hz at 1000?
	Peripherals		PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 6, Mac USB 3.5mm male stereo audio out, 3.5mm male mono audio in, serial 9pin D male full hardware flow control
Standards	Approved Agency		UL, cUL, FCC, VCCi, CE, C-Tick, Nemko, GOST, IRAM

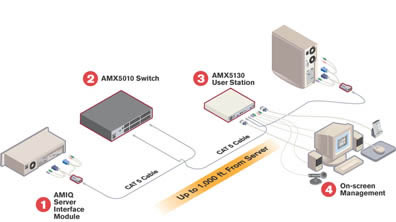

Avocent AMX5130 Diagram
