Avocent AMX5020

Avocent AMX5020
The Avocent AMX5020 4-User by 42-Port analog KVM switch provides end-to-end Cat5 based multi-user access and control to any computer in your network. The AMX Cat5 based KVM switch architecture as a whole includes the AMX5020 matrix KVM switch, the AMIQ Cat5 Server Interface Module, the AMX5110 and/or AMX5120 user stations and the bundled AMWorks Java-based administrative software management tool. The UTP enabled connectivity and analog KVM switching technology will allow multi-user access and full KVM connectivity to any variety of computer platforms in your data center ? PS2, USB, SUN or Serial. The scalable approach with implementing the Avocent AMX Cat5 solution permits users to add computers or devices with ease as data centers evolve with time.

The Avocent AMX5020 KVM switch is a 4x42 appliance with a field-proven scalable architecture that easily accommodates additional servers and users. The Avocent AMX5020 matrix switch allows simultaneous access, supports multi-platform server environments and provides non-blocked access to servers. The Avocent AMX5020 switch includes the AMWorks Java-based system management tool.

Avocent AMX5010, AMX5000, AMX5020, AMX5120, AMIQ-PS2,
AMWorks screen shot

Avocent AMX5020 Features and Benefits

• Provides a solution for consolidating the local ports of KVM/IP products
• Provides full, non-blocked access to servers
• Delivers real-time, high bandwidth video up to 1,000 feet from the server
• Front panel LED indicators add to ease-of-use
• Includes JAVA-based AMWorks software for centralized management
• Network connection on each appliance for ease of management
• The AMIQ server interface module, which provides connection from the server to the switch, reduces cable bulk and saves rack space
• Compact design conserves rack space
• Scalable architecture makes it easy to add and support more servers and users
• Seamlessly integrate existing KVM switches into an AMX KVM matrix solution

Avocent AMX5020 Specifications

Mechanical		Height		1.7 in. (4.3 cm)
		Width		17.2 in. (43.2 cm)
		Depth		13.9 in. (35.2 cm)
		Weight		9.3 lbs. (4.2 kg)
Environmental		Operating Temp		32 to 122 degrees F (0 to 50 degrees C)
		Storage Temp		-4 to 122 degrees F (-20 to 50 degrees C)
Power		Operating Voltage		100 - 240 VAC
		Power Frequency Input:		50-60 Hz
Supported Hardware		Computers		AMIQ-PS2, AMIQ-Sun, AMIQ-USB server interface modules: IBM PC/AT, PS/2 and 100% compatibles
		Monitors		VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75 Hz resolution
		Peripherals		AM5110 & AMX5120 User Station: PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5 and Type 6
Standards		Approved Agency		UL,cUL,FCC,VCCi,CE, C-Tick

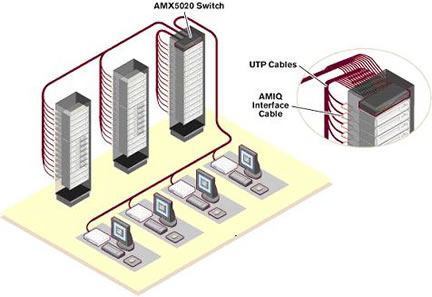

Avocent AMX5020 Diagram
