42U for Avocent SwitchView 8SV1000 KVM Switch

Avocent SwitchView 1000

Avocent SwitchView 8SV1000 KVM Switch
Avocent SwitchView 8SV1000

The Avocent SwitchView 8SV1000 8 Port KVM switch provides PS/2 and/or USB connectivity for users and target devices. This single-user KVM switch has an on-screen display (OSD) and supports 2048 x 1536 video resolutions that is ideal for graphical applications. With a 1U high design, the SwitchView 1000 does not compete for valuable rack space in SMB server rooms. The 8SV1000 is flash upgradeable for fast and easy updates. The password protection feature gives you the benefit of added security access to your business-critical servers.

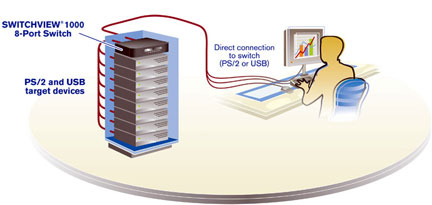

Avocent SwitchView 8 Port KVM Switch Diagram
Avocent SwitchView 8 Port KVM Switch Diagram


Avocent SwitchView 8SV1000 Features & Benefits

  • On-screen display: Simple control through an on screen menu
  • Password protection: Secure access is based on password protection
  • Programmable autoscan: Customize scanning times between attached systems
  • Flash upgradeable: Convenient upgrades mean that the product never goes out of date
  • USB hot key switching: Switch via USB keyboard sequence
  • Daisy chain – auto initialization: Connect multiple units together without complicated configuration
  • USB & PS/2 system/target support: Supports both PS2 and USB systems
  • USB & PS/2 peripheral/user support: Supports PS/2 or USB peripherals to control a mix of PS/2 or USB systems
  • 1U height: Fits perfectly into a standard rack. Does not use a large amount of valuable rack space
  • Combo cables: Uses a three-in-one KVM cable that supports USB or PS/2 target devices
  • Video resolution: 2048 x 1536 video resolution supports the most demanding server room applications

Avocent SwitchView 8SV1000 Specifications

Mechanical
Dimensions
1.75inH x 16.14inW x 6.49inD
(4.45cm x 41cm x 16.5cm)
Weight
4.19 lbs. (1.9 kg.)
Environmental
Operating Temp
Storage Temp
32 to 104 F (0 to 40 C)
-4 to 140 F (-20 to 60 C)
Power
Operating Voltage
Power Frequency
Input Power
  5V
60 Hz
DC 9V
Supported Hardware
Computers
Monitors
Peripherals
PC, Mac, Sun (with USB or PS/2 interface)
2048 x 1536 maximum
PS/2 keyboard, PS/2 mouse, USB keyboard, USB mouse, VGA monitor


Avocent SwitchView 1000 KVM Switch ProductsPart NumberList Price
SwitchView 8SV1000 1 local user, 8 systems switch w/OSD USB & PS/2 support8SV1000-001 $390.00
SwitchView 8SV1000BND1-001 1 local user, 8 systems switch w/OSD, USB & PS/2 support includes 4 CBL0029 cables & 4 CBL0030 cables 8SV1000BND1-001 $530.00

Corporate & Government Discount Pricing is available at 1-800-638-2638


Avocent SwitchView 1000 KVM Switch CablesPart NumberList Price
SwitchView CBL0029 Cable PS2/USB for SV1000 6FT CBL0029 $15.00
SwitchView CBL0030 Cable PS2/USB for SV1000 9FT CBL0030 $20.00
SwitchView CBL0031 Cable PS2/USB for SV1000 15FT CBL0031 $30.00

Corporate & Government Discount Pricing is available at 1-800-638-2638
