The Avocent SwitchView 16SV1000 16 Port KVM switch provides PS/2 and/or
USB connectivity for users and target devices. This single-user KVM
switch has an on-screen display (OSD) and supports 2048 x 1536 video
resolutions. With a 1U high design, the SwitchView 1000 does not compete
for valuable rack space in SMB server rooms. The 16SV1000 is flash
upgradeable for fast and easy updates. This 16-port switch can be
cascaded to support up to 256 target devices. The password protection feature
gives you the benefit of added security access to your business-critical
servers.

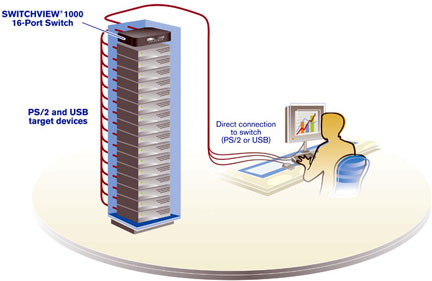

Avocent SwitchView 16 Port KVM Switch Diagram
Avocent SwitchView 16SV1000 Features & Benefits
- On-screen display: Simple control through an on screen menu
- Password protection: Secure access is based on password
protection
- Programmable autoscan: Customize scanning times between attached
systems
- Flash upgradeable: Convenient upgrades mean that the product
never goes out of date
- USB hot key switching: Switch via USB keyboard sequence
- Daisy chain – auto initialization: Connect multiple units
together without complicated configuration
- USB & PS/2 system/target support: Supports both PS2 and USB
systems
- USB & PS/2 peripheral/user support: Supports PS/2 or USB
peripherals to control a mix of PS/2 or USB systems
- 1U height: Fits perfectly into a standard rack. Does not use a
large amount of valuable rack space
- Combo cables: Uses a three-in-one KVM cable that supports USB or
PS/2 target devices
- Video resolution: 2048 x 1536 video resolution supports the most
demanding server room applications
Avocent SwitchView 16SV1000 Specifications
|
Mechanical |
 |
Dimensions
|
|
1.75inH x 16.14inW x 6.49inD
(4.45cm x 41cm x
16.5cm) |
|
Weight
|
|
4.85 lbs. (2.2 kg.) |
|
|
|
|
|
|
Environmental |
Operating Temp
Storage Temp
|
|
32 to 104 F (0 to 40 C)
-4 to 140 F (-20 to 60 C) |
|
|
|
|
|
|
Power |
Operating Voltage
Power Frequency
Input Power |
|
5V
60 Hz
DC 9V |
|
Supported Hardware |
Computers
Monitors
Peripherals |
|
PC, Mac, Sun (with USB or PS/2
interface)
2048 x 1536 maximum
PS/2 keyboard, PS/2 mouse, USB keyboard, USB mouse, VGA monitor |
|
|
