Avocent AutoView 2000
Avocent AutoView AV2000-AM Cat5 KVM

The replacement for this product is the Avocent AutoView 2015.

Avocent AV2000-AM

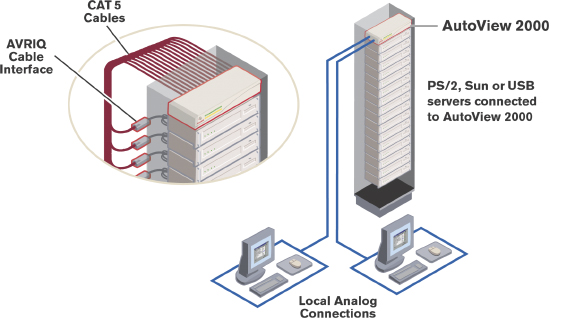

Avocent AutoView 2000 dual-user 16-port Cat5 KVM switch provides PS/2, USB, Sun and serial connectivity over UTP cabling for two users with PS2 and VGA peripherals. The advanced AMIQ interface cables implemented with each computer automatically assigns and maintains unique server names for each attached device. In addition, users will see a reduction in cable clutter by introducing smart AMIQ server interface modules along with the 1U form factor AutoView Cat5 KVM. All plug-and-play AutoView 2000 components are linked using Category 5, 6, or 7 UTP cables. Managing KVM switching capabilities of the AutoView 2000 forces simple yet robust OSD that allows easy system configuration and quick server selection for both users.

Avocent’s multi-user AutoView 2000 KVM switch delivers simple, reliable and convenient connectivity to all major server platforms. Avocent AutoView 2000 features end-to-end CAT 5 connections, advanced cable management and powerful on-screen management. The AVRIQ CAT 5 designed cable interface automatically assigns and retains unique server names for each attached server, which simplifies installation and eases re-configuration.



Avocent AutoView 2000 Features and Benefits

• AutoView 2000 uses all CAT 5 cabling reduces cable bulk

• AutoView 2000 supports all major server platforms

• AutoView 2000 provides flexible access for two simultaneous local users

• AutoView 2000 one click, flash upgrades for all connected AVRIQs

• AutoView 2000 advanced on-screen management provides easy configuration and server selection

Avocent AutoView 2000 Specifications

Mechanical		Height		1.7 in. (4.5 cm)
		Width		17.2 in. (43.7 cm)
		Depth		6.5 in. (15.61 cm)
		Weight		4.8 lbs. (1.91 kg)
Environmental		Operating Temp		41F (0C) to 104F (40C)
		Storage Temp		-4F (20C) to 122F (50C)
Power		Operating Voltage		100 - 240 VAC, 50 - 60 Hz
		Power Frequency
		Input Power
Supported Hardware		Computers		IBM PC/AT, PC and 100% compatibles
		Monitors		XGA, XGA-II with adapter, 1600 x 1200 @ 85 Hz resolution
		Peripherals		PC keyboard, PC mouse, Microsoft Explorer mouse, Microsoft IntelliMouse family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble Wheel, Logitech Marble FX and Kensington 4-button mouse
