Avocent AutoView 1515
Avocent AutoView AV1515-001 Cat5 KVM

The Avocent AV1515-001 8-port AutoView multi-user KVM switch provides user support for USB and/or PS/2 keyboards and mice. This 8 port KVM switch also provides support for USB, PS/2, Sun, and serial target devices.  Built for SMB server room environments, the AutoView 1515 switch all-in-one solution provide the convenience of a high-quality, On-Screen Display (OSD).

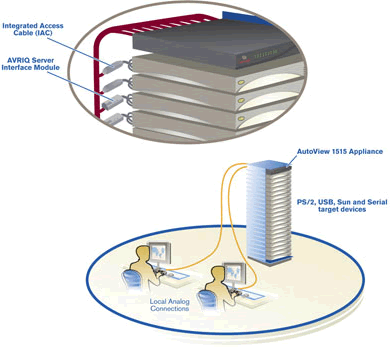

The AutoView AV1515 switch includes two unique cabling options. Integrated access cables provide PS/2 and USB support and are available in lengths of 7, 10 and 15 feet. The server interface module, with Sun and serial support, covers a range of 100 feet between the target device and the switch. Both cabling options automatically assign and retain unique server names for each attached server, which simplifies installation and eases re-configuration.

Avocent AV1515 Features & Benefits

• Dual-user, 8-port KVM switch USB and PS/2 support on the local port allows administrators to use USB and/or PS/2 keyboards and mice
• Unique cable designs Includes two unique cabling options. Integrated access cables offer server room environments flexible cabling lengths of 7, 10 and 15 feet between the target device and the switch. Integrated access cables provide PS/2 and USB support. The server interface module, with PS/2, USB, Sun and serial support provides up to 100 feet between the target device and the switch with the user’s existing cabling infrastructure. Both cabling options automatically assign and retain unique server names for each attached server, which simplifies installation and eases re-configuration
• Powerful user access control Allows an administrator complete control over the KVM switch setting and allows granting KVM access to only certain users. The administrator can also limit the user accounts KVM access to only specific targets on the switch.
• Sun keyboard localization: Supports international markets
• Sun keyboard translation Allows users to use PS/2 keyboards with Sun targets. This allows special Sun keys to be emulated using specific keystrokes on the PS/2 keyboard
• OSCAR graphical user interface -Multilingual OSD The OSCAR OSD makes it easy for users to switch, monitor, and locate target devices. The OSD supports multiple languages and is fast and easy to use because of its mouse-driven functionality
• Integrates with Avocent AutoView 3100 and 3200 KVM switches Allows users to add alternative method of access via an IP network
• Operating System (OS) independent Ensures connection to the attached servers regardless of the health or type of OS

Avocent AutoView 1515 Specifications

Mechanical		Height		1.75 in. (4.45 cm)
		Width		17.00 in. (43.18 cm)
		Depth		11.00 in. (27.94 cm)
		Weight		8 lb. ( 3.6 kg) without cables
Environmental		Operating Temp		50 to 122 F (10 to 50 C)
		Storage Temp		-4 to 140 F (-20 to 60 C)
Power		Operating Voltage		100 to 240 VAC Autosensing
		Power Frequency		50/60 HZ
		Input Power		40 W maximum
Supported Hardware		Computers		USB, PS/2, Sun and serial
		Monitors		VGA, SVGA (XGA, XGA-II with adaptor), 1600 x 1280 @ 75 Hz resolution
		Peripherals		USB and/or PS/2 keyboards and mice, Microsoft® Explorer mouse, Microsoft IntelliMouse family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble Wheel, Logitech Marble FX and Kensington 4-button mouse, Microsoft PS/2 tilt wheel mouse
