Avocent AV1400-001
Avocent AutoView 1400 KVM Solutions

Avocent AV1400-001
Avocent AutoView 1400 8-port Cat5 KVM switch provides PS/2, USB, Sun and serial connectivity over UTP cabling for a single user with PS2 and VGA peripherals. The advanced AMIQ interface cables implemented with each computer automatically assigns and maintains unique server names for each attached device. In addition, users will see a reduction in cable clutter by introducing smart AMIQ server interface modules along with the 1U form factor AutoView Cat5 KVM. All plug-and-play AutoView 1400 components are linked using Category 5, 6, or 7 UTP cables. Managing KVM switching capabilities of the AutoView 1400 forces simple yet robust OSD that allows easy system configuration and quick server selection.

Avocent AutoView 1400 8-port, single user KVM switch provides PS/2, USB, Sun and serial connectivity, advanced cabling options, flexible access and a next-generation user interface in one switching solution.

The AutoView 1400 switch server interface modules and integrated access cables automatically assign and retain unique server names, which simplifies installation and eases re-configuration. With flexible cable options and advanced on-screen management, the AutoView 1400 switching system is an ideal solution for today’s small office and mid-sized business networking environments.

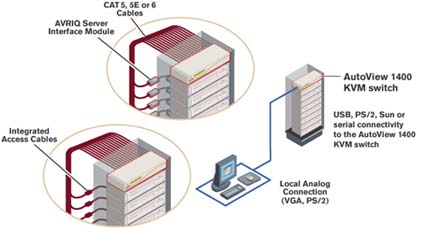

AutoView AV1400-001 Diagram



Avocent AutoView 1400 Features and Benefits


• Integrated access cables offer PS/2 or USB keyboard, video and mouse connectivity in one, slim CAT 5 cable, which reduces cable bulk, saves time and reduces cost.

• Server interface modules support all major server platforms and VT100 serial-based devices.

• Provides access to eight PCs and network devices.

• Advanced on-screen management provides easy configuration and server selection.

• BIOS-level access ensures connection to the attached servers regardless of the health or type of operating system.

• A space-saving 1U rack mount design.

• Flash-upgrades firmware for fast and easy updates for appliances and server interface modules.

Keep Alive power safeguard allows attached servers to continue network functions in the event of power failure to the AutoView switch.

Avocent AutoView 1400 Specifications


Mechanical		Height		1.75 in. (4.45 cm)
		Width		17.00 in. (43.18 cm)
		Depth		11.00 in. (27.94 cm)
		Weight		8 lbs. (3.6 kg)
Environmental		Operating Temp		50 to 122F (10 to 50C)
		Storage Temp		-4F to 140F (-20 to 60C)
Power		Operating Voltage		100 - 240 VAC Autosensing
		Power Frequency		50 - 60 Hz
		Input Power		40 W Maximum
Supported Hardware Standards
		Computers		IBM PC/AT, PC and 100% compatibles
		Monitors		XGA, XGA-II with adapter, 1600 x 1200 @ 85 Hz resolution
		Peripherals		PC keyboard, PC mouse, Microsoft Explorer mouse, Microsoft IntelliMouse family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble Wheel, Logitech Marble FX and Kensington 4-button mouse
		Approved Agency		UL FCC Class A, cUL, ICES Class A, CE, N, GS, IRAM, VCCI, Class A, MC Class A, C-Tick
