Aten ACS1216L
Aten ACS1216L LCD

The Aten ACS1216L has been discontinued.

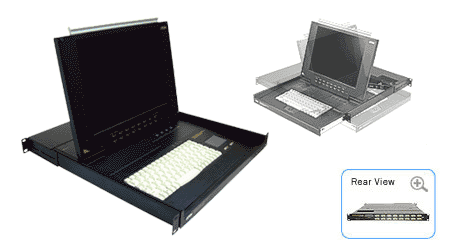

Here is your total network management solution - the Slideaway - a totally new, integrated KVM solution from Aten. The ACS1216L combines a 16 port KVM switch, keyboard, 15" LCD screen, and mouse pad in a 1U high rack drawer!

Just slide the console out, flip the LCD cover and you are ready to go to work! The Slideaway saves you up to one-third of your rack cabinet space - it's the absolute space saving solution!

Aten ACS1216L Features

• A single LCD console drawer with built-in KVM switch controls up to 16 computers directly
• 16-port KVM switch, keyboard and trackball, all in a 1-U high and 19” rack mountable unit
• Dedicated daisy chain port to daisy chain up to 31 ACS1216 units and allows you to control up to 512 computers from a single console
• No software required, Plug-n-Play
• Convenient computer selection via intuitive On Screen Display (OSD) menus or Hot Key combinations
• AutoScan feature for monitoring selected computers
• Hot pluggable - add or remove computers without having to power down the switch
• Auto-sensing of station position on daisy chained installations - no need for manual DIP switch setting - front panel LED indicates station position
• Port names automatically reconfigured when station sequence is changed
• Two level password protection – up to four authorized users and an administrator view and control the computers - separate profiles for each
• Two level logout - manual and timed
• PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
• 15” RGB analog LCD display supporting high XGA resolutions of up to 1024 x 768 with 250cd/m(sq) brightness

Aten ACS1216L Requirements

>

Computers

The following equipment must be installed on each computer:

A VGA, SVGA or Multisync card

Note: Since the integrated LCD monitor's maximum resolution is 1024 x 768, make sure that the computer resolution settings do not exceed 1024 x 768.

A 6-pin mini-DIN (PS/2 style) mouse port.

Either a 6-pin mini-DIN (PS/2 Style) keyboard port with +5V DC on pin 4 and Ground on pin 3, or a 5-pin DIN (AT Style) keyboard port with +5V DC on pin 5 and ground on pin 4.*

* See the note under Cables in the next section.

Cables

Substandard cables may damage the connected devices or degrade overall performance. For optimum signal integrity and to simplify the layout, we strongly recommend that you use the following high quality CS Custom Cable sets: Function CS Part Number

Master View to Computer:

2L5201P - 1.2 m

2L5202P - 1.8 m

2L5203P - 3.0 m

Master View to Master View (Daisy Chaining):

2L1700 - 0.6 m

2L1701 - 1.8 m

Note: 1. ACS1216L does not support serial mice. You cannot use Serial-to-PS/2 adapters with the extender cables. Attempts to do so will not work.

2. If your computer uses an AT style keyboard socket you will need to purchase a PS/2-to-AT keyboard adapter (Part No. 2A106, or any standard keyboard adapter), in order to plug the cable into the computer's keyboard port.

Aten ACS1216L Package Content

>

1 ACS1216L SlideawayTM KVM Switch

2 Custom KVM Cables (Model: 2L5202P)

1 Power Adapter with Power Cord

1 User Manual

1 Quick Start Guide

1 LCD OSD Quick Reference

Aten ACS1216L Specifications

> Daisy Chain > Humidity> Port Selection> Power Consumption> Video Resolution> Weight

Function	ACS1216L
> Computer Connections
> Daisy Chain or Cascading	> 512
> Direct	> 16
> CPU Connectors
> Keyboard, Mouse, and Video	> 16xDB15F
> 1 DB25M (Daisy Chain Out)
> Dimensions
> Depth	> 517mm
> Height	> 45 mm (1U)
> Width	> 483mm (19")
> Emulation
> Keyboard	> PS/2
> Mouse	> PS/2
> Housing
> Case	> Metal
> 0 - 80% RH
> LEDs
> On Line	> 16 (orange)
> Power On	> 1 (blue)
> Selected	> 16 (green)
> Hotkeys ; OSD (On Screen Display)
> 120V, 60Hz, 24W; 230V, 50Hz, 24W
> 1024x768 ; 15" TFT LCD
> 26.4 lbs.
