Minicom KVMS Extender Combines KVM & Serial extension
Minicom KVMS Extender 0DT50002 is a powerful, long-range solution that extends your KVM (keyboard, video, mouse) and Serial devices up to 300m/1000ft from your computer over a single CAT5 cable.

Minicom KVMS Extender Plug-and-play installation
Minicom KVMS Extender 0DT50002 consists of a transmitter, a receiver, and a single interconnecting CAT5 cable. Easy to install, plug-and-play hardware means that it requires no software, creates no network conflicts, and is compatible with virtually any operating system. Minicom's advanced CAT5 technology eliminates troublesome cable clutter and adds to the ease and speed of installation. The receiver's small form-factor makes the system ideal for desktop and flat-panel mounting.

Minicom KVMS Extender 0DT50002 Back-side
Minicom KVMS Extender 0DT50002 Back-side

Minicom KVMS Extender Superior video quality
Minicom KVMS Extender 0DT50002 uses proprietary skew compensation technology to deliver superior video quality over long distance. This KVMS Extender 0DT50002 technology greatly expands the operational envelope for both KVM and digital signage applications.

Minicom KVMS Extender Full Serial control
Bi-directional RS-232 gives full point-to-point, real-time Serial communication, enabling the extension of touch-screens and other useful Serial devices.
Minicom KVMS Extender 0DT50002 is ideal for banks, schools, museums, training centers, and kiosks - wherever the touch-screen console is in constant use by the public, and the associated PC must be kept separate and secure. In industrial applications, Minciom KVMS Extender 0DT50002 enables PC's to run safely from the back-office while the user operates the KVM console from the production line. For clean-rooms, the Minicom KVMS Extender 0DT50002 makes PC's more accessible by extending the user's KVM console out of the controlled environment where the PC is held. Minicom's KVMS Extender 0DT50002 dual user/dual location function is ideal for creating increased worker productivity and efficiency.

Minicom's 0DT50002 Enhances digital signage management
Minicom's KVMS Extender 0DT50002 high quality video transmission enables plasma/LCD screen installations to be extended from media player PC's by up to 300m/1000ft with minimal video degradation. The dual user capability enables IT administrators to power on/off, and to query the status of the extended screen from the player PC site.

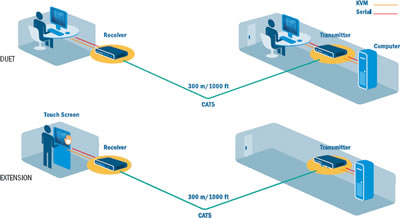

Minicom KVMS Extender 0DT50002 Typical Application

Minicom KVMS Extender 0DT50002 Typical Application

Minicom KVMS Extender 0DT50002 Features & Benefits:

  • Combines KVM & Serial extension to over 300m/1000ft
  • Full bi-directional RS-232 for touch-screen connection
  • Single CAT5 cable for quick/easy installation
  • Ideal for both KVM and digital signage applications
  • High video resolution - 1920 x 1440 @ 60Hz
  • Skew compensation for superior video
  • Display Data Channel (DDC) support for optimal configuration
  • Dual user/location function for efficient management
  • KVM switch extension for distant server/Serial device control

Minicom KVMS Extender 0DT50002 Specifications:

Mechanical
Dimensions
Transmitter: 188x92x42mm / 7.5x3.7x1.7in
Receiver: 188x92x28mm / 7.5x3.7x1.1in
Weight
1.70 Kg/3.8lb
Environmental
Operating Temp
0°C to 40°C/32°F to 104°F
Storage Temp
0°C to 40°C/32°F to 104°F
-40°C to 70°C/-40°F to 158°F


Consumption

 Transmitter: 5V/500mA
Receiver: Tra5V/800mA
Power
 Supply
External power adapter 5VDC 1A
Supported Hardware
System Cable
CAT5 UTP/ FTP cable 2x4x24 AWG Solid Wire




Maximum Distance

 300m/1000ft
Baud rate
57,600
Screen resolution Up to 1920 x 1440 @ 60Hz (depends on cable length)
Mouse support 2 or 3 or 5 button PS/2, Wheel mouse
Operating Systems
DOS, Windows (3x, 9x, 2000, NT, ME, XP), Novell, Linux, UNIX, HP UNIX, QNX, SGI, FreeBSD, BeOS, Open VMS
Connectors

Transmitter

 VGA in/console - HDD15F
Keyboard in/console- MiniDin6F
Mouse in/console - MiniDin6F
Serial in - DB9F
Serial console - DB9M
Service - RJ11
System - RJ45

Receiver
VGA - HDD15F
Keyboard - MiniDin6F
Mouse - MiniDin6F
Serial - DB9M
System - RJ45

Minicom KVMS ExtenderPart Number
Minicom KVMS Extender: Superior KVM and Serial Extension up to 300m/1000ft from your computer0DT50002A

Corporate & Government Discount Pricing is available at 1-800-638-2638
